1 Series Small Dial Micrometer 1003T
High Quality / High Precision / High Reliability Comparative Measuring Tool.
Keyword:
Classification:
Dial Gauge
Contact E-mail
Contact Phone
Product Details
Pointer Type Indicator
High Quality / High Precision / High Reliability Comparative Measuring Tool.
Series 1 - Portable Small Dial

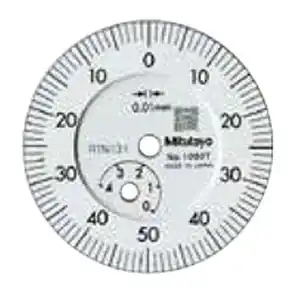

· The portable indicator with a dial of 831 or 836mm is suitable for use in confined spaces within measuring fixtures.

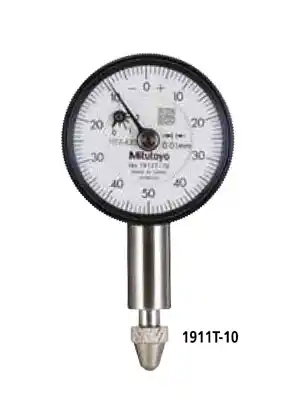

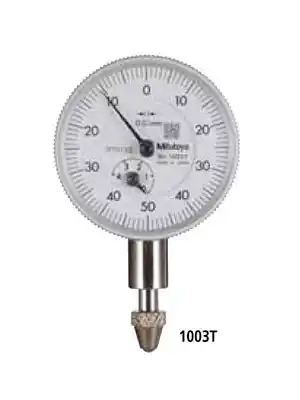

| 1911T-10 | 1003T | |||
 |

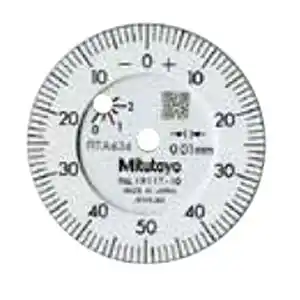

Graduation Value: 0.01mm Measuring Range: 2.5mm |

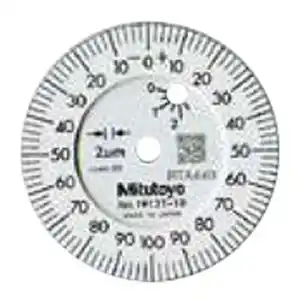

Graduation Value: 0.02mm Measuring Range: 0.5mm |
Graduation Value: 0.01mm Measuring Range: 4mm |  |

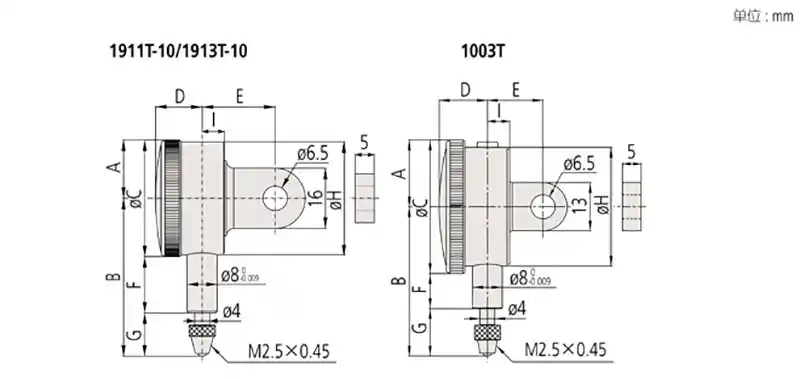

Size
| Item Number | A | B | C | D | E | F | G | H | I | Weight of the Machine (g) | |
| With Ear Back Cover | Flat Back Cover | ||||||||||
| 1911T-10 | 15.5 | 42 | 31 | 12.9 | 19.2 | 15 | 11.5 | 30 | 5.9 | 56 | 52 |
| 1913T-10 | 15.5 | 39.5 | 31 | 12.9 | 19.2 | 15 | 9 | 30 | 5.9 | 56 | 52 |
| 1003T | 18 | 40.3 | 36 | 13 | 15 | 9.5 | 12.8 | 32 | 6 | 61 | 58 |
Note:
1. Limit claws, locking devices, and measuring rod lifting rods cannot be installed.
2. The function of the stop block is the measuring probe (standard configuration), which can prevent damage to the indicator caused by over-travel of the measuring rod. Therefore, when selecting a measuring probe smaller than 7mm, a washer (outer diameter at least ∅7mm, inner diameter ∅3mm, thickness about 0.5mm) needs to be installed between the measuring probe and the measuring rod.
Specification
| Item Number | Graduation Value | Measuring Range (Measuring Range / per circle stroke) | Indication Error* | Repeatability Accuracy | Dial Reading Value | Measuring Force | ||||
| With Ear Back Cover | Flat Back Cover | Full Range | Return | 1/10 circle Stroke | 1 circle Stroke | |||||
| 1911T-10 | 1911TB-10 | 0.01mm | 2.5mm(1mm) | 12 micrometers | 4um | 8um | 10um | 3um | 0-50-0 | Below 1.8N |
| 1913T-10 | 1913TB-10 | 0.002mm | 0.5mm(0.2mm) | 6um | 2.5um | 2.5um | 5um | 1um | 0-100-0 | Below 1.8N |
| 1003T | 1003TB | 0.01mm | 4mm(1mm) | 13um | 4um | 8um | 11um | 3um | 0-50-0 | Below 1.4N |
* Finished product inspection is conducted in the longitudinal position (measuring probe downward position) to ensure accuracy.

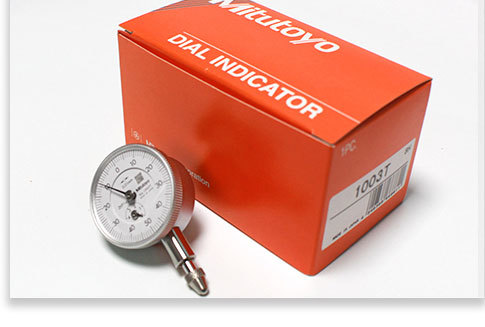

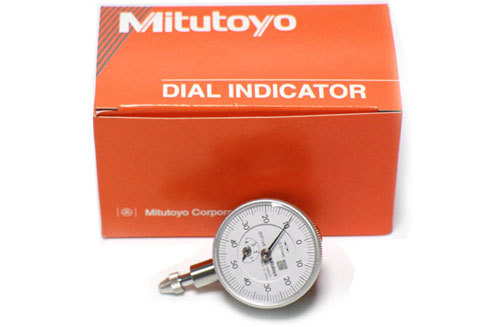

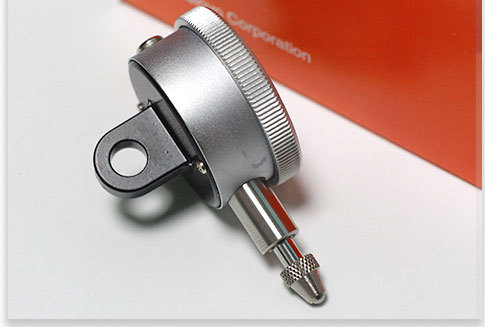

Actual Display
 |  |  |  |
