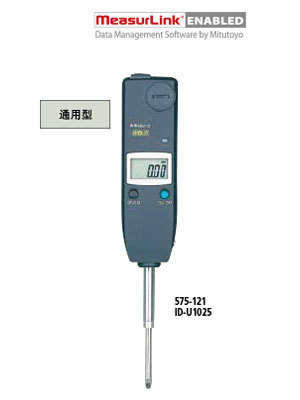

575 series data output slim economic general-purpose digital display meter
The dial and the watch cover are well secured between them by an O-ring, and the locking device and measuring rod lifting rod (optional) can be installed on the left side, providing waterproof and oil-proof effects.
Keyword:
Classification:
Dial Gauge
Contact E-mail
Contact Phone
Product Details
General Parameters
● Accuracy: Refer to specifications (excluding quantization error)
● Resolution: 0.01mm
● Display: 5-digit number and symbol
● Length Reference: ABSOLUTE capacitive linear encoder
● Maximum Response Speed: Unlimited (does not support scanning measurement)
● Measuring Force: Refer to specifications
● Sleeve Diameter: 8mm (ISO/JIS type)
● Standard Probe: 901312 (ISO/JIS type)
● Battery: SR44 (1 piece), 938882, for digital display (standard accessory)
● Battery Life: Approximately 20,000 hours under normal use
● Dust/Water Protection Level: Achieves IP42 protection level
● Measuring Rod Lifting Rod: 137693
Function
● Origin Setting (Zeroing)
● Counting Direction Conversion
● Automatic Power On/Off
● Data Output
● Warning: Low Voltage, Calculation Error
Options
● Measuring Rod Lifting Cable (Stroke: 10mm): 540774
● SPC Connection Cable: 1m (905338), 2m (905409).
● USB-ITN-F (2m): 06AFM380F
● Input Tool
IT-016U (USB Keyboard Signal Converter) 264-016-10
IT-007R (RS-232C Communication Conversion Type) 264-007
● U-WAVE-T Connection Cable (160mm): 02AZD790F For Foot Switch: 02AZE140F
● Mitutoyo Digimatic Microprocessor DP-1VA LOGGER: 264-505DC
● Mitutoyo Dial Indicator Probe (For details, see pages F-49-F-54)
● Measuring Platform (For details, see pages F-81-F-86)
● General Indicator with a measuring range of 25.4mm.
● Low-cost, easy-to-operate model that meets basic needs.
● The ABS (absolute) sensor automatically restores the last origin position during the indicator's operation and eliminates overspeed errors, achieving high reliability. For origin setting, refer to page F-18 "Origin Setting of Digital Indicators". The battery has achieved a continuous use life of 20,000 hours.
● Unique 8mm character height LCD for easy reading.
● Equipped with a data output port, allowing it to connect to measurement network systems and statistical process control systems.
Specification
| Item Number (With ear back cover, flat back cover) |
Model | Resolution | Measuring Range | Full Range Accuracy* | Measuring Force | ||
| - | 575-121 | - | ID-U1025 | 0.01mm | 25.4Tm | 0.02mm | Below 1.8N |
Size
