Product Series
The 178 series surface roughness measuring instrument comes with a dedicated control device.
The significant improvement of the small surface roughness measuring instrument is equipped with a large touch screen color LCD display.
Keyword:
Classification:
Roughness Gauge
Contact E-mail
Contact Phone
Product Details
● Significant improvements to the small surface roughness measuring instrument are equipped with a large touch screen color LCD display for intuitive operation and excellent ease of use.
● Switch between rail and non-rail measurement modes based on measurement conditions for optimized evaluation.
● Completed the performance of the desktop surface roughness measuring instrument and simple support and related optional accessories.

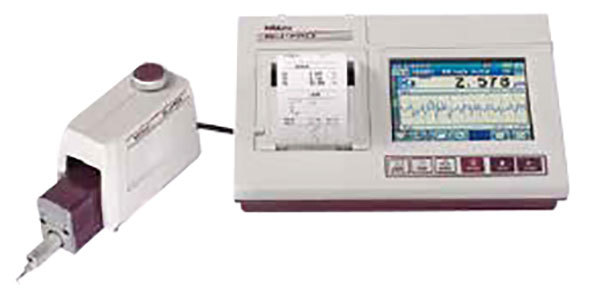

178 Series - Small Surface Roughness Measuring Instrument
| Model | SJ-411 | SJ-412 | |||
| Item Number | 178-580-01DC | 178-580-02DC | 178-582-01DC | 178-582-02DC | |
| Measuring Range | X Axis | 25mm | 50mm | ||
| Z Axis (Detector x) | 800μm, 80μm, 8μm optional side needles, maximum up to 2400μm. | ||||
| Detector | Resolution | 0.01μm (in the 800μm range), 0.001μm (in the 80μm range), 0.0001μm (in the 8μm range). | |||
| Probe Tip Pin Shape (Angle/Radius) | 60°/2μm. | 90°/μm. | 60°/2μm. | 90°/μm. | |
| Measuring Force | 0.75mN | 4mN | 0.75mN | 4mN | |
| Bending Radius | 40mm | ||||
| Detection Method | Non-rail/Rail (Switching) | ||||
| Applicable Standards | JS1982/JS1994/JS2001/ISO1997/ANS/VDA | ||||
| Evaluation Profile | Original Profile, Roughness Profile, Waveform Profile, DF Profile, Roughness, Motif Profile, Waveform Motif Profile | ||||

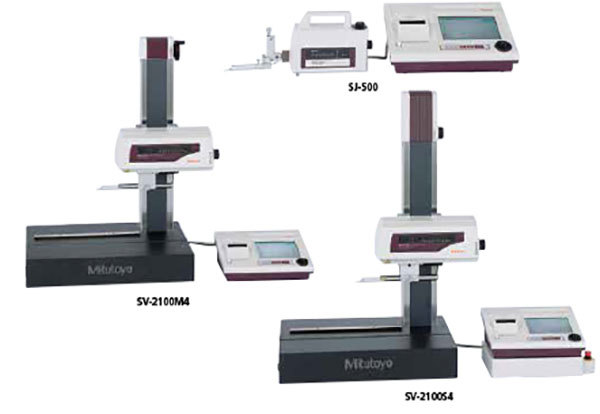

178 Series - Surface Roughness Measuring Instrument with Dedicated Control/Device Type
Specification
| Model | SJ-500 | SV-2100M4*1 | SV-210054*1 | SV-2100H4*1 | SV-2100W4*1 | ||
| Table Type | Optional Accessories | Manual Column | Electric Drive | ||||
| Measuring Range | Z1 Axis (Detector) | 800μm, 80μm, 8μm. | |||||
| X Axis | 50mm | 100mm | |||||
| Resolution | X Axis | 0.05μm. | |||||
| Z1 Axis (Detector) | 0.01μm (800μm), 0.001μm (80μm), 0.0001μm (8μm). | ||||||
| Z2 Axis (Column) | One | One | 1μm. | ||||
| Evaluation Profile | Original Profile, Roughness Profile, Waveform Profile, DF Profile, Roughness, Motif Profile, Waveform Motif Profile | ||||||
*1: A part of the instrument body is made of natural stone, so the surface may have some patterns.
The working table of SU-500 is optional.
